Engineered Technical Ceramics
- Engineered Technical Ceramics

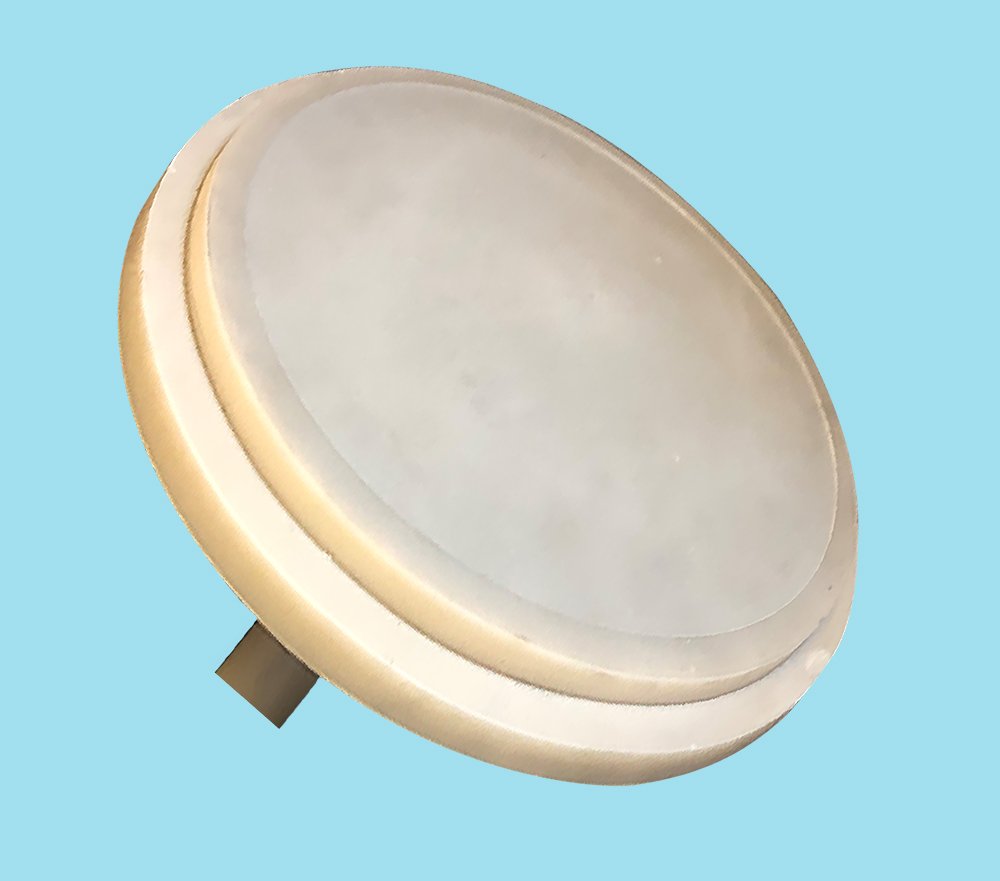

Engineered Technical ceramics are advanced high-performance ceramic materials that possess exceptional mechanical, electrical, thermal, and chemical properties. They can be made from a variety of materials, including oxides, carbides, nitrides, and boride. These materials are designed and engineered to meet specific application requirements in a wide range of industries.
Fralock provides engineered technical ceramics fabricated with several different materials including alumina, glass, quartz, and aluminum nitride.

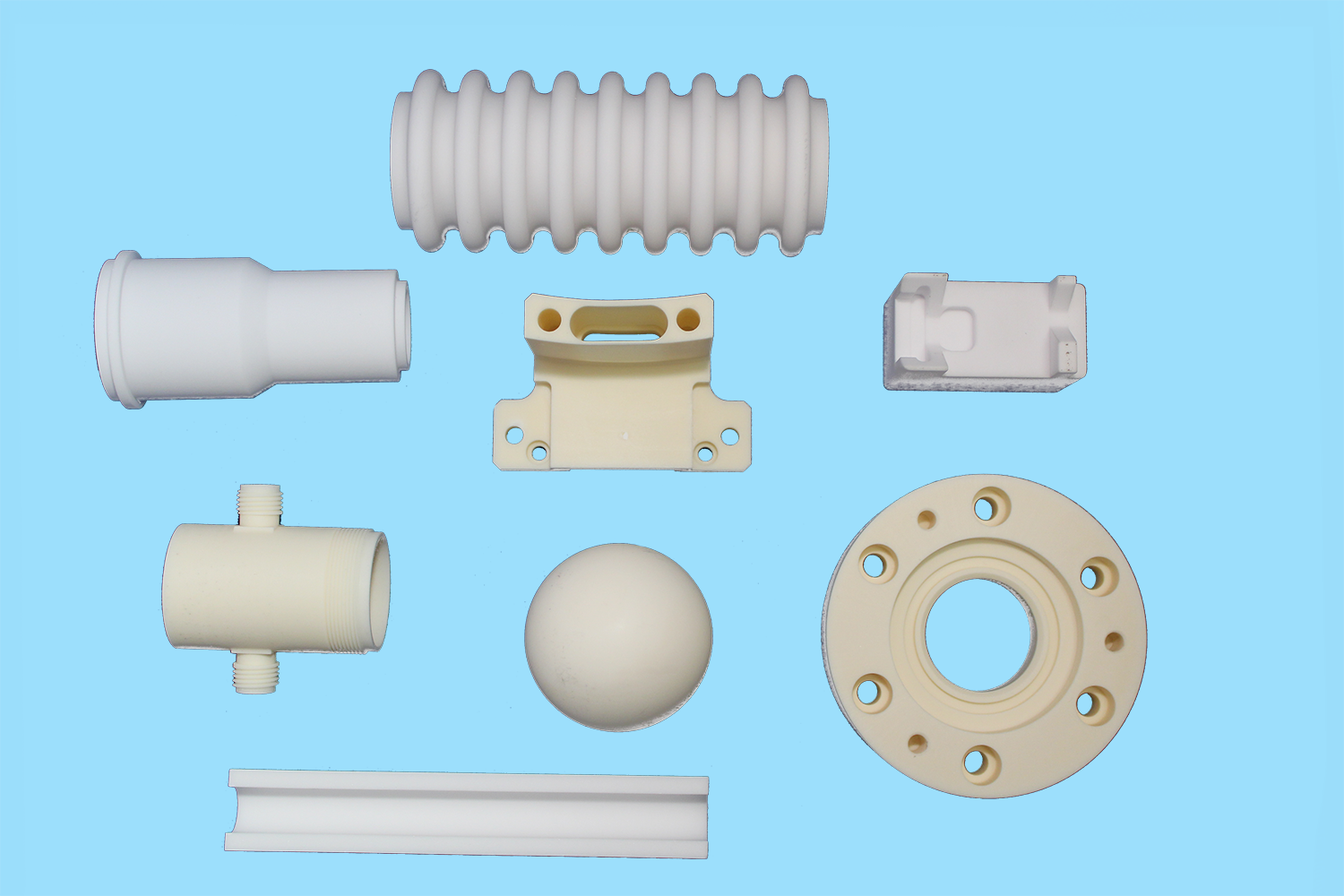

Structural Ceramics
Industrial structural ceramics are passive (non-electrified) advanced material ceramic components that are used in a variety of applications. Their resistance to wear, thermal stability, and resistance to corrosion make the application of ceramic components an ideal choice for many industrial uses, including thermal or electrical insulators.
Read More
The manufacturing of engineered technical ceramics is a highly specialized process, and it typically involves advanced techniques such as powder processing, sintering, and hot pressing. These techniques allow for the creation of ceramics with highly specific properties and characteristics, making them valuable in a wide range of industries.
Fralock Materials Include:
Ceramics
- Alumina
- Alumina Nitride (AlN)
- Silicon Nitride (SiN)
- Boron Nitride (BN)
- Silicon Carbide (SiC)
Glass
- Alumina
- Fused Quartz
- Fused Silica
- Sapphire
- ULE / Zerodure (low CTE glasses)
- Silicon
- BK7 (optical glass)
- Borosilicate
- Germanium

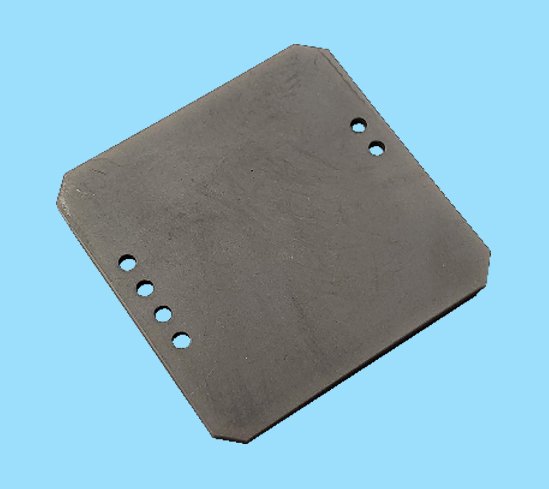

- Aluminum Nitride
This material is used in a variety of applications encompassing both active (multi-layered components with circuit traces) and passive structural ceramics used for a wide array of applications.
Active ceramics include heaters and Low Temperature Co-Fired Ceramics (LTCC).
- Alumina
Fralock provides a variety of alumina-based ceramics with purities up to ranging from 96.0% to 99.9%, to accommodate different structural ceramics applications.
Our ceramics can also be metallized to fit the requirements of your application. Contact us for your specific needs.
Alumina and AlN Ceramics Specifications
Material Name
Finished Sizes Inches Diameter
Green Machining Details
Purity
Fired Density g/cm3
Alumina
FR-960
0.5 to 8
Complex
96.0%
3.70
FR-975
0.5 to 8
Complex
97.5%
3.72
FR-980
7 to 27
Simple
98.0%
3.78
FR-980
0.5 to 8
Complex
98.0%
3.78
FR-995
1 to 30
Simple, complex
99.5%
3.85
FR-997-EM
1 to 30
Simple
99.7%
3.87-3.89
FR-997
1 to 30
Simple, complex
99.7%
3.88-3.90
FR-998
1 to 30
Simple, complex
99.8%
3.89-3.92
FR-999-LLTA
1 to 30
Simple, complex
99.9%
3.91-3.94
Aluminum Nitride
FR-AlN (3-YtO)
0.5 to 15
Simple, complex
99.9%
>3.24
